MAXX CNC Aluminum Hopup Chamber EVO

Name: MAXX CNC Aluminum Hopup Chamber EVO
Brand: MAXX
SKU: MX-HOP020EVO
Price: 72.00 GBP
Availability: InStock

SKU : MX-HOP020EVO

Now available from : £72.00

3 in stock

Description Delivery Returns

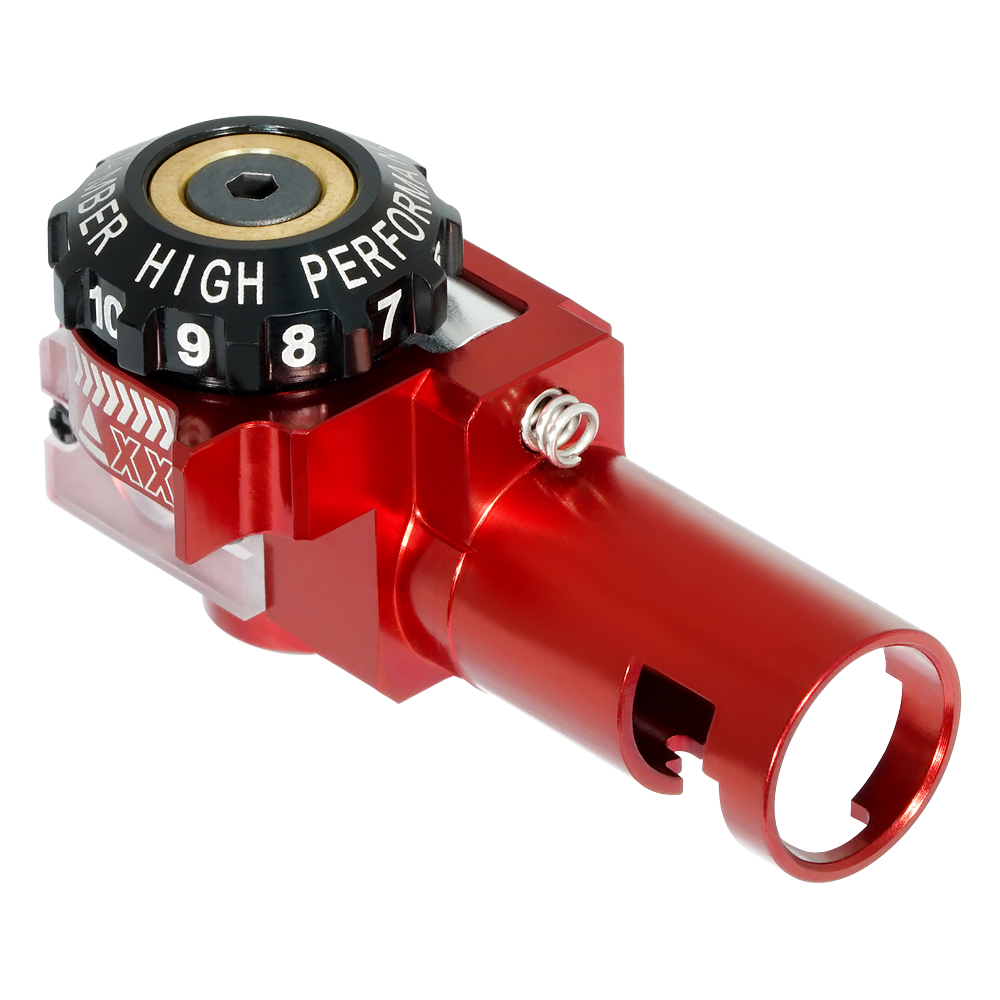

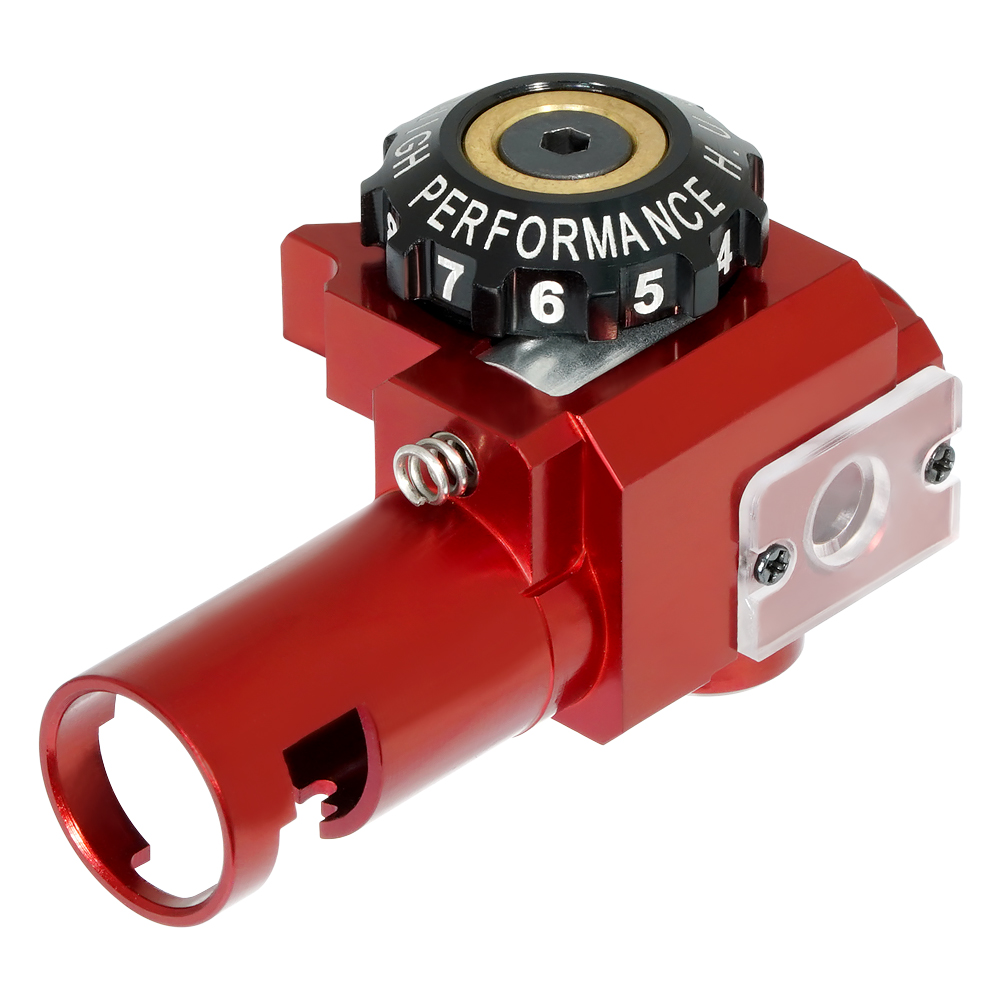

CNC Aluminum Hopup Chamber EVO unit is precisely machined to perform accurately and consistently on the ASG 2018 CZ Scorpion EVO-3 Airsoft Rifles.
The Hopup Chamber EVO unit is built with a Precision Aluminum Rotary Dial Knob for fine hopup adjustments and equipped with 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot.
The Hopup Chamber EVO unit is designed to accept the 18.5mm nozzle length, and fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use.
The Hopup Chamber EVO unit is wisely built with a self-centering inlet to ensure the hopup unit is inserted exactly in the center of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling.
Also included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting.

***The Dual UV LED Tracer Module is an add-on option to glow BB in the dark. Operating Voltage from 7VDC – 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over the stock setup. Please check your FPS!

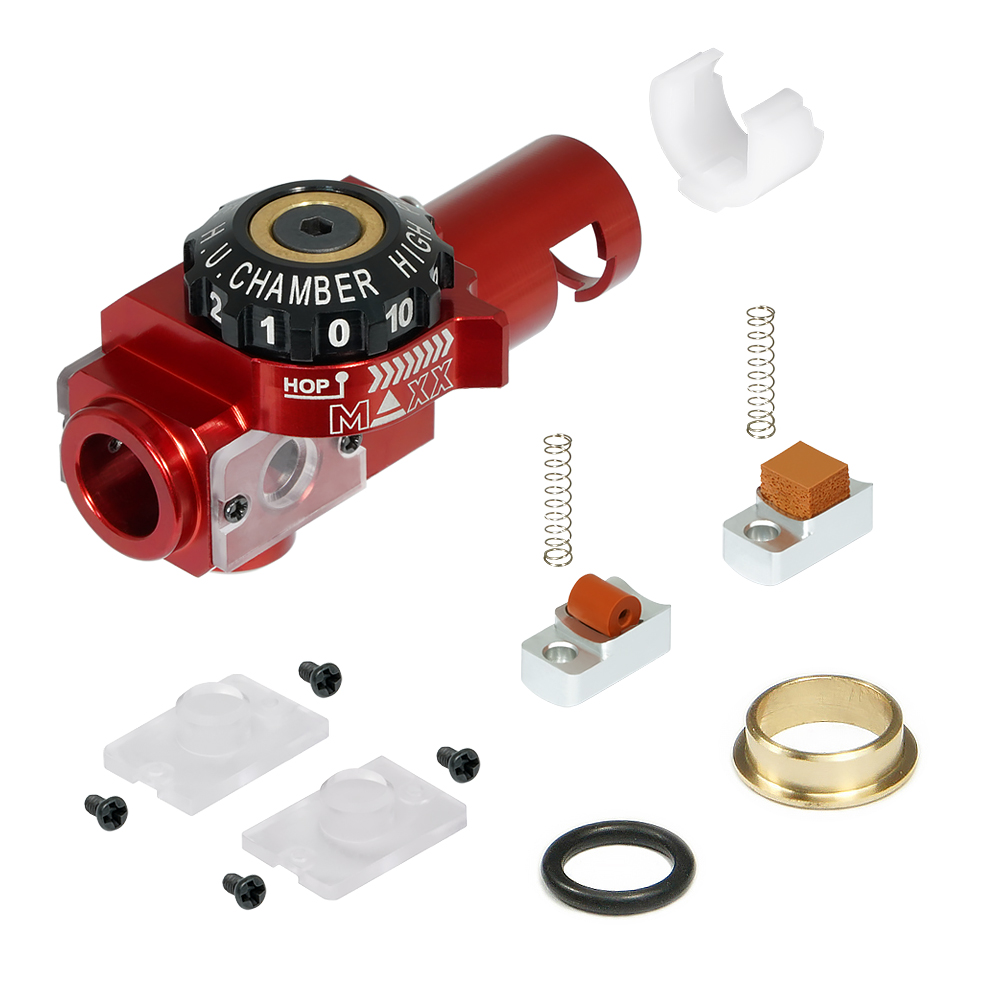

Includes
1 x CNC Aluminum Hopup Chamber EVO unit
1 x Dual UV LED Boards and Module set (optional)
2 x Strong Clear Vinyl Cover set
1 x CNC Aluminum Soft Round Nub
1 x CNC Aluminum Soft Flat Nub (4mm) (Pre-installed)
2 x Steel Nub Spring
1 x Steel Compression Spring
1 x Brass Dial Bushing
1 x Dial O-ring
1 x CNC Precision Aluminum Rotary Dial Knob
1 x CNC Delrin Locking C-Clip
1 x CNC Brass Barrel Spacer
1 x Brass Barrel Spacer Holder O-ring

Specification
Overall Length: 47mm
Overall Height: 26.25mm
Inlet Diameter: 11.5mm
Hub Outer Diameter (to fit into Outer Barrel): 12mm
Hub Inner Diameter (to fit Nozzle): 7mm
Material: Brass/Aluminum 6061

Features
Machined from a solid aircraft aluminum block with tight tolerances to achieve the most accuracy, consistency, and durability
Performed accurately and consistently on the ASG 2018 CZ Scorpion EVO-3 Airsoft Rifles
Built-in Precision Aluminum Rotary Dial Knob for fine hopup adjustments
Pre-installed 4mm Flat Soft Bucking Nub (6mm Bucking Nub is optional) to perform best with R-Hop and Standard-Hop to keep the BB shooting accurately and consistently on every single shot
Accepted the 18.5mm nozzle length
Fully compatible with most aftermarket soft and hard rubber buckings without losing FPS or dropping BB during use
Wisely built with a self-centering inlet to ensure the hopup unit is inserted exactly in the center of the 11.5mm inner bore ASG EVO-3 gear box outlet without wobbling
Included an advanced CNC Delrin Locking C-Clip to hold the inner barrel tight in place without wobbling and twisting
The Dual UV LED Tracer Module to glow BB in the dark ready!

Usage
Used for the ASG 2018 CZ Scorpion EVO-3 Airsoft Rifles

Requires
Wearing eye protection is recommended
Use proper tools for disassembly and reassembly the gear box with great care due to spring tension
Bearing lubricant oil/grease is recommended for smooth operation
